LED Recessed Panel Light , Ceiling Led Lights For Home 180 Degree Beam Angle

HANGZHOU LECCO ELECTRIC APPLIANCE CO.,LTD

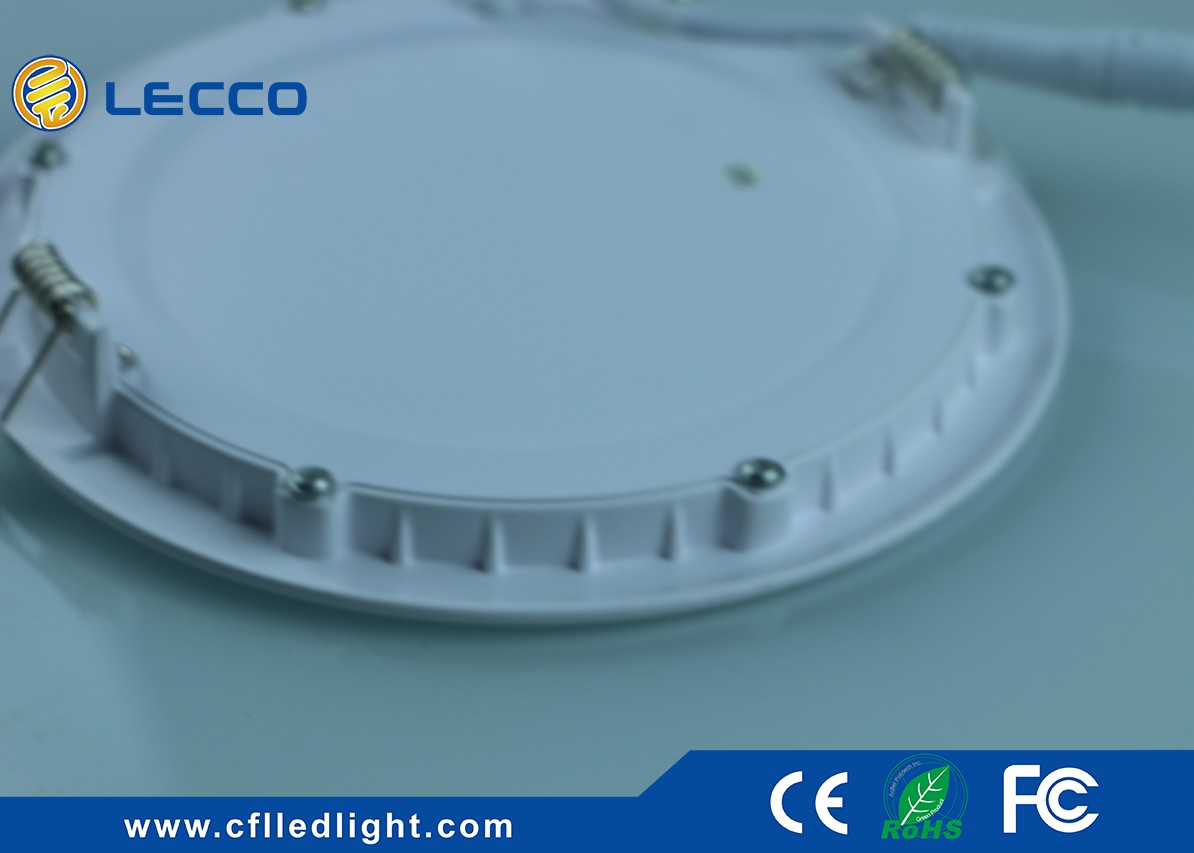

LED Recessed Panel Light , Ceiling Led Lights For Home 180 Degree Beam Angle

Brand Name : LECCO

Model Number : LPL-195C15W-1

Certification : CE RoHS FCC

Place of Origin : CHINA

MOQ : 50 pcs

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 5000 pcs per month

Delivery Time : 10 days

Packaging Details : 20 PCS / CTN , Meas : 38x31.5x23CM , G.W. : 5.5 KGS N.W. : 4.5 KGS

Power : 15W

Material : Die Cast Aluminum + Arcylic

Lumen : 1200LM

Voltage : 85 - 265V

SDCM : < 3

Life time : 30 000H

Luminous Efficiency : > 80 LM / W

LED Chip : SMD 2835 , Epistar

Contact Now



LED Panel Light Circualr 195 * 10 MM 15W Arcyllic Light Guide Plate 80 LM / W 6400K CRI > 80

Quick Details

Model No. : LPL-195C15W-1Certificate : CE RoHS FCC
Item Type : LED Panel LightPower : 15W
Place of origin :Jiaxing CityInput Voltage : 85 - 265V
Brand name : LECCOLumen : 80 LM / W
Warranty : 3 yearWorking Temp. : - 40 - 60 ℃


Description

1 . UGR < 19 ,CRI > 80 Ra ,Luminous efficiency > 80 .
2 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
3 . Living up to the IEC62031 : 2008 & 62560 standard .
4 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . No flicker , No noise , No electromagnetic interference ( EMI ) .
7 . Using spray - painted aluminum frame , very simple and fashionable .
8 . 75 pcs SMD 2835 Chip 0.2W ,Epistar / Bridgelux .
9 . Using pure Die casting aluminum cover , haveing excellent heat conduction ,160 W / ( m.K ) .
10 . Using imported acrylic ( PMMA ) as light guide plate , more efficient to guide the light .
11 . For the pack ,using single corrugated box .
12 . Using constant current driver with IC to make sure the led chip life .
13 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
14 . Easy to apply , can be recessed in the stand size ceiling .
15 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .
16 . Voltage : all of our LED products supply wide range voltage input 85 - 265V .

Lamp parameters

Type LED Panel Light Circular 195 * 10 mm 15W
Optical ParameterColor Rendering Index> 80 Ra
SDCM< 3
Color Temparature6400K
Luminous Efficency> 80 lm / w
Light Transmittance> 90%
UGR< 19
Luminous Decay< 5% at 3000hrs , < 9% at 6000hrs
LED Chip BrandEpistar
Junction Temperature65 ℃
Chip Quantity75 pcs SMD 2835 , 0.2W
Electronic ParameterPower15W
Power Factor> 0.9
Isolated Power SupplyYes
Input Voltage85V - 265V
CurrentConstact Current with IC
Dirver BrandMosopower , Wellpower , Meanwell , Lifud
Structural ParametersSize195 * 10mm
InstallationReccessed
MaterialsDie Casting Aluminum + PMMA ( import )
IP RatingIP 20
Thermal Tranmissivity160 W / ( m.K )
The Value of Permissible Voltage< 5000V
Beam Angle120 °
Operating Temp.-20℃ to +40℃
Life Time> 30 000H
Energy Efficiency GradeA
CertificationCE / RoHS / FCC
Lumen> 1200 LM


Quality Control ( QC )

1 . Strict raw materials inspection .
2 . Technical parameter adjustment :
1 ) Technicians will tune the technical parameters of each items to make sure the Wattage , P.F.living up to the requirement of customer
2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage
3 ) Turn on off test , to make sure the life time of the lamp
4 ) Start test in low temperature and low voltage ( light in the fridge )
3 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .

Trade terms
1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .
2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF

Application


Widely used in kitchen , toilet , offcie .
