T2 20W Fluorescent Compact Light Bulbs E27 With PBT Materials 6400K Daylight

HANGZHOU LECCO ELECTRIC APPLIANCE CO.,LTD
Contact Now

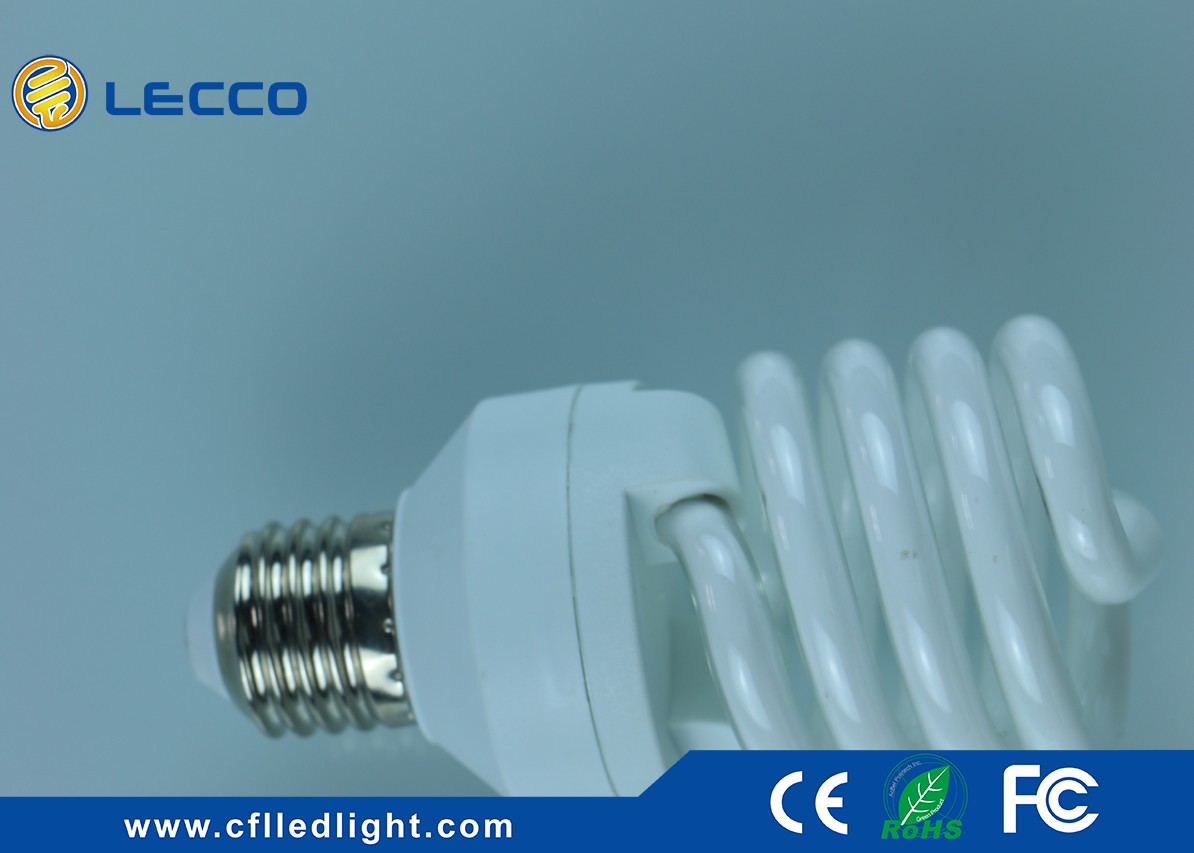

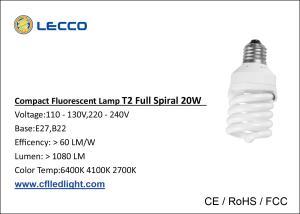

T2 20W Fluorescent Compact Light Bulbs E27 With PBT Materials 6400K Daylight

Brand Name : LECCO

Model Number : LCF-FS20W-T2

Certification : CE RoHS FCC

Place of Origin : CHINA

MOQ : 500 pcs

Price : Negotiate

Payment Terms : Western Union

Supply Ability : 50,000 pcs per month

Delivery Time : 15 days

Packaging Details : 50 PCS / CTN , Meas : 55.5x27.5x14.5CM , G.W. : 3.4 KGS N.W. : 2.7 KGS

Watt : 20W

P.F. : > 0.5

Base : E27 or B22

Turn on - off time : > 10 000

SDCM : < 5

Start time : 0.5S

Contact Now

T2 Full Spiral 20W 1200 LM P.F. > 0.5 Super Mini Compact Fluorescent Lamps 6400K Daylight

Features

1 . Wattage : 20W

2 . Solid Mercury Technology

3 . 100% triphosphor A - grade powder

1 ) Luminous efficency: > 60 lm / w

2 ) Brightness maintance: > 80% after 2000H

3 ) CRI : > 80 Ra

4 ) SDCM : < 5

4 . P.F. : > 0.5

5 . Power consumption: < 10%

6 . Lead free glass tube

7 . Compact type , integrate the ballast in the lamp

Lamp parameters

Tube Parameter for CFL Type Full Spiral
Tube Diameter Φ 7mm
Wideth 50mm
Length /
Circle 4.5T
Color Rendering Index > 80 Ra
SDCM < 5
Color Temparature 2700K - 6400K
Luminous Efficency > 60 lm / w
2000h Luminous Depreciation < 15%
Responsive Time < 0.5s
Turn on off time > 10 000 times
Luminous Decay Less than 15% at 2000hrs
Powder 100% A - gradeTriphosphor
Electronic Parameter for CFL Power 20W
Power Factor > 0.5
Working Voltage 110V - 127V / 185 - 265V
Transister / Capacitor Huajing / Aishi
Base Size E27
Materials Nickelplated Aluminum
Type Soldering
Plastic cover Wideth 52mm
Materials PBT
No middle cover
Operating Temp. - 30 ℃ to + 40 ℃
Life Time > 8000H
Time need to be stable 3 Mins
Lumen > 1200 LM

Description

1 . Passing the EMC test .

2 . Guarantee is for 2 years .

3 . Turn on – off time is more than 12 000 times .

4 . Living up to the IEC60968 & 60969 standard .

5 . The average lifetime of our lamp is at least 6000h .

6 . Can start under the condition of - 30 ℃ and low voltage .

7 . No mercury vapor , using solid mecury technology , Hg < 3mg

8 . No flicker , No noise , No electromagnetic interference ( EMI ) .

9 . Using nickleplated aluminum base , very good to avoid getting rusted .

10 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .

11 . For the pack , we have color box , single blister , double blister . 80% electricity compared to traditional incandescent bulbs .

12 . Voltage : Both 110 - 130V and 220 - 240V available with 50 / 60Hz ; Wide range voltage is possible .

13 . Using PBT plastic cover, PBT have two advantage : ① Inflaming retarding ② High temperature resistance .

14 . The key components is the electrolytic capacitor and transister , we are choosing GRP or AISHI for our electrolytic capacitor and choosing HUAJING as our transister .

15 . Easy to apply , can change traditional incandescent bulbs directly , the ballast in integrated in to the lamp .

Competitive advantage

1 . Strict raw materials inspection .

2 . Technical parameter adjustment :

1 ) Technicians will tune the technical parameters of each items to make sure the Wattage,P.F living up to the requirement of customer

2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage

3 ) Turn on off test , to make sure the life time of the lamp

4 ) Start test in low temperature and low voltage ( light in the fridge )

3 . In the warehouse,our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .

4 . After laoding the container,we will trace the life time of ech order,we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .

5 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .

6 . we are testing every lamp before packed in the cartons .

Quality Control ( QC )

1 . Strict raw materials inspection .

2 . In the warehouse , our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .

3 . we are testing every lamp before packed in the cartons .

4 . Technical parameter adjustment :

1 ) Technicians will tune the technical parameters of each items to make sure the Wattage , P.F.living up to the requirement of customer

2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage

3 ) Turn on off test , to make sure the life time of the lamp

4 ) Start test in low temperature and low voltage ( light in the fridge )

5 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .

6 . After laoding the container , we will trace the life time of ech order , we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .

Application

Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
