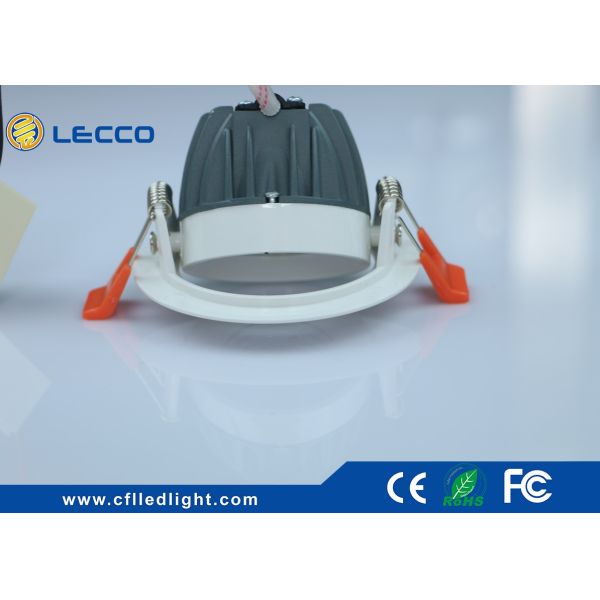

Benz Type LED Recessed Spot Lights 7W 120° Beam Angle COB Chip 700 Lumen
Quick Details
| Model No. : LSL-COB7W-1 | Certificate : CE RoHS FCC |
| Item Type : LED Recessed Spot Lights | Power : 7W |
| Adjust Angle : 15 ° | Input Voltage : 85 - 265V |
| Brand name : LECCO | Lumen : 100 LM / W |
| Warranty : 3 year | Working Temp. : - 40 - 60 ℃ |
Description
1 . SDCM < 5 ,CRI > 80 Ra ,Luminous efficiency > 100 .
2 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
3 . Living up to the IEC62031 : 2008 & 62560 standard .
4 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . Using spray - painted aluminum frame , very simple and fashionable .
7 . Using pure die casting aluminum , haveing excellent heat conduction ,160 W / ( m.K ) .
8 . For the pack ,color box and master cartons .
9 . Using constant current driver with IC to make sure the led chip life .
10 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
11 . Voltage : all of our LED products supply wide range voltage input 85 - 265V .
12 . Beam angle 120 ° , Adjust angle15 °
Lamp parameters
| Type | LED Recessed Spot Lights COB 7W Benz Type |
| Optical Parameter | Color Rendering Index | > 80 Ra |
| SDCM | < 3 |
| Color Temparature | 6400K |
| Luminous Efficency | > 100 lm / w |
| Light Transmittance | > 90% |
| UGR | < 19 |
| Luminous Decay | < 5% at 3000hrs , < 9% at 6000hrs |
| LED Chip Brand | Epistar |
| Junction Temperature | 65 ℃ |
| Chip Quantity | COB 7W |
| Electronic Parameter | Power | 7W |
| Power Factor | > 0.9 |
| Isolated Power Supply | Yes |
| Input Voltage | 85V - 265V |
| Current | Constact Current with IC |
| Dirver Brand | Mosopower , Wellpower , Meanwell , Lifud |
| Structural Parameters | Size | W 120 * H 70 mm |
| Installation | Recessed |
| Materials | Die Casting Aluminum + PC |
| Beam Angle | 120 ° |
| Adjust Angle | 15 ° |
| IP Rating | IP 20 |
| Thermal Tranmissivity | 160 W / ( m.K ) |
| The Value of Permissible Voltage | < 5000V |
| Operating Temp. | -20℃ to +40℃ |
| Life Time | > 30 000H |
| Energy Efficiency Grade | A |
| Certification | CE / RoHS / FCC |
| Lumen | > 700 LM |
Trade terms
1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .
2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF
Frequently Asked Questions
1 . About price
All is FOB prices , and If you don’t provide the quantity and mention if need to OEM your brand , we qoute the wholesale prices for our brand .
2 . About samples
we can provide samples for you to check and test for fee , but need you to pay the express fee .
3 . About the pcking
Color box and cartons is witout design,and can use numper sticker with your logo and brand .
4 . About your brand and color box
We can OEM your brand and printing the color box with your logo , but need the MOQ 500 pcs .
Application
Widely used in home & commercial Lighting , applying in office , Hallway , Hotel , room , shop , ect .
